The composite board industry requires high-precision, stable, and anti-delamination forming solutions for stainless steel composite plates, carbon steel composite plates, corrosion-resistant composite plates, and titanium-steel composite materials. EZHONG provides integrated forming solutions including precision leveling, cylinder rolling, and assembly forming for multi-layer composite boards with base layer thicknesses ranging from 3mm to 50mm and clad layer thicknesses from 0.5mm to 5mm.
Designed to meet the processing characteristics of multi-layer composite structures, EZHONG equipment helps manufacturers solve common industry challenges such as composite layer delamination during leveling, cracking during rolling, and unstable forming precision. The final dimensional tolerance can be controlled within ±0.3mm while maintaining bonding strength above 500MPa, ensuring stable structural performance and reliable composite layer integrity.
Our composite board forming equipment is widely used in chemical processing, corrosion-resistant equipment manufacturing, pharmaceutical machinery, food processing systems, and industrial pressure vessel applications requiring high corrosion resistance, high strength, and lightweight structures.
EZHONG composite plate rolling machines are specially developed for processing composite material cylinders and multi-layer plate structures with high forming precision and stable rolling performance.
The equipment adopts specialized clamping systems and advanced rolling processes to effectively prevent composite layer cracking and delamination during forming. It supports precision rolling for composite cylinders with diameters ranging from Φ0.5m to Φ6m and is suitable for various composite material combinations with total plate thicknesses ranging from 3.5mm to 55mm.
Key Advantages
High-precision rolling for composite plate cylinders
Prevents composite layer cracking and delamination
Suitable for stainless steel, titanium-steel, and corrosion-resistant composite materials
Forming accuracy within ±0.3mm
Stable processing for multi-layer composite structures
Excellent dimensional consistency and bonding stability
The composite board rolling machine is widely used for corrosion-resistant tanks, chemical processing equipment, pharmaceutical machinery, food-grade containers, and industrial pressure vessel manufacturing.

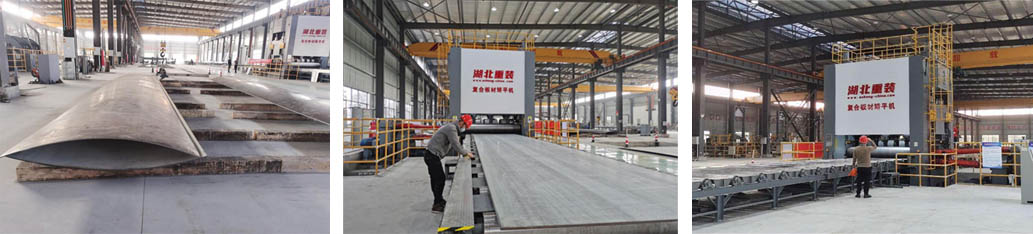

EZHONG composite plate precision leveling machines are specially designed for multi-layer composite materials with different thicknesses, structures, and material characteristics.
The equipment can accurately adjust leveling parameters according to composite layer configurations, effectively correcting plate deformation and eliminating internal stress generated during processing. The internal stress relief rate exceeds 93%, significantly improving plate flatness, structural stability, and bonding reliability between layers.
Suitable Applications
Stainless steel composite plates
Carbon steel composite plates
Titanium-steel composite materials
Corrosion-resistant composite plates
Multi-layer industrial composite boards
The stainless steel composite plate leveling machine helps manufacturers improve processing precision, reduce material waste, and lower production costs by more than 25%, while ensuring high-quality and efficient composite material forming performance.
A single EZHONG machine can process approximately 50-80㎡ of composite plates per day, helping downstream manufacturers improve product quality and production efficiency.
http://www.jysah.com
Introduction: Anhui gold composite materials co., LTD., is specialized in the research and development, production, management of professional companies, from the domestic large steel enterprises Nanjing iron and steel co., LTD., only twenty kilometers in Nanjing iron and steel group large modern mill, testing equipment and advanced management, insist on independent innovation and absorb the combination of advanced technology, develop and master the key technology of hot rolled metal composite plate, has the domestic talent in the field of hot rolled composite plate, provide customers with the most reliable metal composite materials. The products are widely used in chemical industry, water conservancy, electric power, salt industry, aluminum industry, medicine, food, paper making, grain and oil machinery, pharmaceutical machinery, household appliances and other fields.

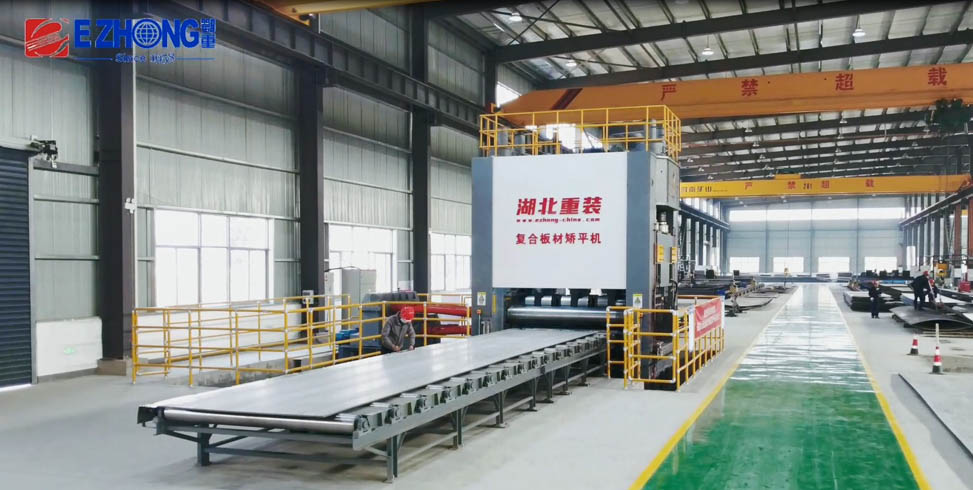

The company selected our EZW43T-40*3000 9-roller 500MPa model to process their specialized composite materials. This high-precision CNC plate rolling machine ensures consistent, programmable bending quality essential for advanced composite board forming.
( EZW43T-40*3000 9 rollers 500mpa)
1 | Plate to be corrected | Yield Limit (MPa) | 500 |
Maximum plate thickness (mm) | 40 | ||
Minimum plate thickness (mm) | 10 | ||
Maximum plate width (mm) | 3000 | ||
2 | working roll | Roll pitch(mm) | 400 |
Roller diameter (mm) | 340 | ||
Roll number | 7（Up 3 Down 4） | ||
Effective length of roller body (mm) | 2300 | ||
3 | Guide (edge) roller | Roll pitch(mm) | 440 |
Roller diameter (mm) | 440 | ||
Roll number | 2 （Up） | ||
4 | supporting roll | Roll pitch(mm) | 400 |
Roller diameter (mm) | 390 | ||
column number | 3 | ||
5 | moved cross beam | Down trip (mm) | +60～-20 |
Maximum swing amount (mm) | ±7 | ||
Down speed (mm / min) | 25 | ||
rising height (mm) | +300 | ||
6 | Corrective speed (mm / min) | 5 | |
7 | Corrective accuracy (mm / 2m²) | 3 | |
8 | Main motor power (kW) | 15×7+7.5×2 | |
9 | Lower motor power (kW) | 7.5×2 | |
10 | Overall dimensions of the main engine (length, width, ground and height) mm | 9540×4530×7605×5895 | |
http://www.gallianz.com.cn
Introduction: Anhui Sinosteel United New Material Co., Ltd. is a high-tech enterprise specializing in the research and development, production and sales of stainless steel / steel, titanium / steel, nickel base alloy / steel and other composite materials. In the field of rolling composite, explosion + rolling composite, it is committed to building a "little giant" enterprise of the whole industry chain. The company covers an area of 100 mu, with fixed assets of 120 million yuan, has 6 core technology invention patents, and an annual production of 20,000 tons of various metal composite plates. For a long time, the company relies on science and technology to seize the commanding heights of the industry, to create value for users, is our unswerving pursuit. Successfully developed (austenite, ferrite, martensite, biphase) stainless steel / steel composite plate, titanium / steel composite plate, single (double) metal composite coil, nickel base alloy composite plate, titanium and titanium alloy plate (coil) and other five series of products, product performance, higher than the national standard.

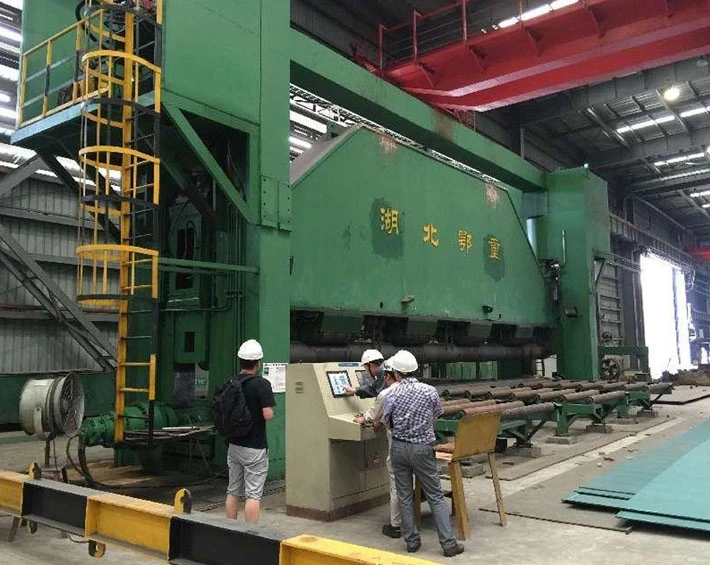

EZW43T-30*4200 9 rollers 360mpa
(EZW43T-30 * 4200 9 roller 360 mpa)
NO. | NAME. | parameter | |
1 | Flat plate | yield limit MPa | 360 |
maximum gage mm | 30 | ||
maximum breadth mm | 4000 | ||
minimum gage mm | 8 | ||
2 | working roll | Roll number | 5 (Up 2 down 3) |
roll(er)/spacing rollerMM | 360/310 | ||
barrel length mm | 4200 | ||
3 | guied roller | Roll numbermm | 2(Up2) |
Roller distance / roller diameter mm | 400/460 | ||
barrel length mm | 4200 | ||
4 | supporting roll | Roller distance / roller diameter mm | 360/355 |
column | 3 | ||
5 | moved cross beam | Press the schedule mm | +180～－25（hydraulic balance） |
Pressure down the speed mm | 25 | ||
The biggest swing mm | ±7 | ||
6 | The correction velocity mm/s | 100 | |
7 | The correction accuracy mm / m | 1.5-2 | |
8 | Power of main motor | 15kW×5+5.5Kw×2 | |
9 | Pressure down motor power | 5.5kW×2 | |
10 | Maximum load feature WX | 1300000N. m(Actual calculation 12960 00N.m) | |
11 | Total correction force kN | 30000(Actual calculation 28800) | |
12 | mmThe relative elevation of the correction roller surface is mm | +800 | |
13 | Feed and outlet electric roller channel | 4m long × 3 sets | |
14 | External size: long / width / height / ground height (m) | 9.4/3.8/7.2/5.6 | |
