The tank truck industry requires high-precision, high-strength, and highly reliable forming solutions for chemical tank trucks, oil tankers, material transport tanks, and hazardous chemical transport vehicles. EZHONG provides integrated sheet metal forming solutions including plate leveling, rolling, and forming for high-strength steel, aluminum alloy, and stainless steel plates with thicknesses ranging from 6mm to 30mm.
Designed to meet the core requirements of pressure resistance, sealing performance, and transportation safety, EZHONG equipment helps manufacturers solve common production challenges such as low tank forming precision, insufficient sealing quality, and inadequate pressure resistance performance. The final tank roundness tolerance can be controlled within ≤2mm/m, ensuring stable structure strength, excellent sealing performance, and zero leakage during transportation.
Our tank truck forming equipment strictly follows industry safety standards and supports the manufacturing requirements for various transportation media including oil, chemical raw materials, liquid materials, and industrial substances. A single EZHONG machine can process approximately 3-5 tank truck bodies per day with tank capacities ranging from 10m³ to 50m³.
EZHONG CNC tank truck plate rolling machines are specially designed for manufacturing pressure tanker cylinders and transport tank bodies with high forming precision and stable rolling quality.
The equipment supports precision rolling for tank truck cylinders with diameters ranging from Φ1.5m to Φ3m and is suitable for different tank structures and material requirements. The machine efficiently processes high-strength steel, stainless steel, and aluminum alloy plates while maintaining excellent dimensional consistency and pressure resistance performance.
Key Advantages
High-precision rolling for tank truck cylinders
Suitable for high-strength steel, stainless steel, and aluminum alloy plates
Excellent sealing performance for pressure tanks
Tank roundness tolerance within ≤2mm/m
Single tank forming time within 35 minutes
Fully compliant with tank transportation safety standards
The tank truck cylinder rolling machine is widely used for oil tankers, chemical transport tanks, hazardous material tankers, and industrial liquid transportation vehicles.
EZHONG tank truck plate leveling machines are specially developed for medium and thick plates used in pressure tank manufacturing applications.
The equipment effectively corrects plate deformation and eliminates internal stress generated during cutting and rolling processes, achieving an internal stress relief rate exceeding 92%. This significantly improves tank assembly precision, welding quality, structural stability, and service life.
Suitable Applications
Chemical tank trucks
Oil transportation tankers
Hazardous material tankers
Stainless steel transport tanks
Industrial material tank vehicles
The oil tanker plate leveling machine helps manufacturers improve welding sealing quality, ensure zero leakage performance, and enhance the operational safety and durability of transport tank systems.

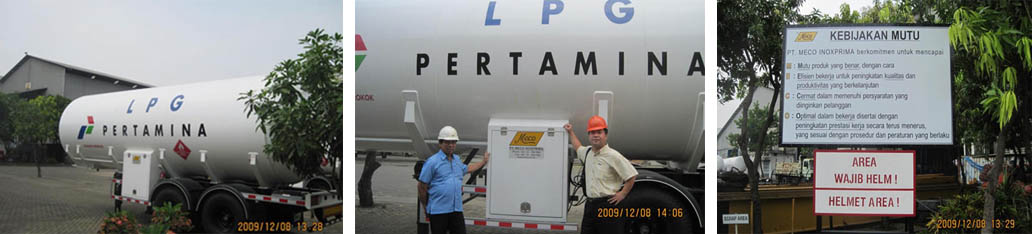

https://www.meco.co.id
Introduction: The company is located in Jakarta, focusing on mechanical and electrical engineering, design and construction services, including shopping malls, supermarkets, hotels, apartments and other large engineering projects, to provide customers with one-stop professional services.

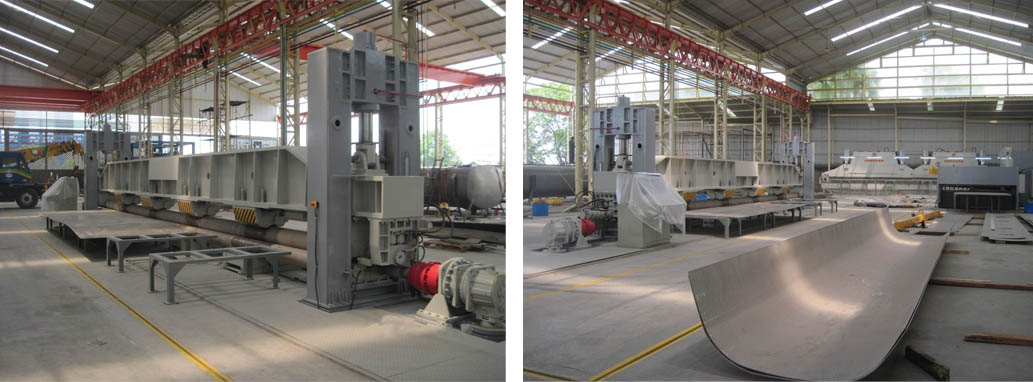

EZW11SXY-20*12000 three-roll plate rolling machine
(EZW11SXY-20*12000 three-roll plate rolling machine)
specification | |||
NO. | Item | Unit | Data |
1 | specifications | mm | 10X12000 |
2 | maximum thickness of bending plate | mm | 10 |
3 | The maximum width of the coil | mm | 12000 |
4 | Plate yield limit | MPa | 345 |
5 | Workpiece diameter at full load condition | mm | R445 |
6 | Roller diameter | mm | θ300 |
7 | Lower roller diameter | mm | θ240 |
8 | The center distance of the lower roller | mm | 400 |
9 | Roll row number | row | 4 |
10 | Upper working roll tilt degree | +_100 | |
11 | Plate speed | M/min | -4.2 |
12 | Lift the travel path of the upper working roller | mm | 294.5 to 88.6 above the line |
13 | The upper roller seat plunger cylinder adjusts the stroke | mm | 0--200 |
14 | Power of main motor | KW | 18.5X2 |
15 | Main cylinder rated pressure | MPa | 19 |
16 | Maximum pressure on main cylinder | MPa | 21 |
17 | Maximum pressure of the plunger cylinder | MPa | 25 |
18 | Rated pressure of the pillar plug cylinder | MPa | 12 |
19 | Maximum pressure of the strucylinder | MPa | 14 |
20 | Machine external dimensions, length, width and height | mm | 17277X1590X4310 |
