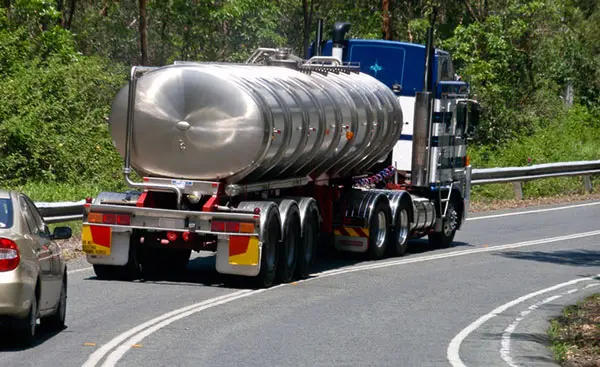

The road and railway tanker industry requires high-strength, high-precision, and high-safety forming solutions for pressure tank manufacturing. EZHONG provides integrated sheet metal forming solutions for hazardous chemical tankers, railway freight tankers, edible oil tankers, and liquefied gas tankers.
Our tanker sheet metal forming machines are specially designed for pressure tank cylinders, supporting precision leveling, rolling, and forming for high-strength steel and stainless steel plates with thicknesses ranging from 8mm to 40mm. The equipment strictly complies with hazardous chemical transportation and railway freight safety standards to ensure reliable tank manufacturing performance.
Designed for pressure resistance up to 2.5MPa and zero-leakage sealing requirements, EZHONG equipment helps manufacturers solve common tanker production challenges such as low rolling precision, poor welding quality, and insufficient sealing performance. The final tank roundness tolerance can be controlled within ≤1.5mm/m, ensuring excellent pressure resistance, sealing reliability, and transportation safety.
EZHONG CNC tanker plate rolling machines are specially developed for manufacturing pressure tanker cylinders for road and railway transportation applications.
The equipment supports precision rolling for tanker cylinders with diameters ranging from Φ2m to Φ4m and is suitable for various tanker structures and transportation media requirements. The machine efficiently processes high-strength steel and stainless steel plates while maintaining stable rolling precision and excellent sealing performance.
Key Advantages
High-precision rolling for pressure tanker cylinders
Suitable for high-strength steel and stainless steel plates
Excellent sealing performance for tanker applications
Tank roundness tolerance within ≤1.5mm/m
Single tanker forming time within 50 minutes
Fully compliant with transportation safety standards
The railway tanker rolling machine is widely used for hazardous chemical tankers, fuel transportation tankers, liquefied gas tankers, edible liquid transport tanks, and railway freight tank manufacturing.
EZHONG hazardous chemical tanker plate leveling machines are specially designed for heavy tanker plates and high-strength steel materials with thicknesses ranging from 8mm to 40mm.
The equipment effectively corrects plate deformation and eliminates internal stress generated during cutting and rolling processes, achieving an internal stress relief rate exceeding 93%. This significantly improves tank assembly precision, welding quality, and structural stability.
Suitable Applications
Hazardous chemical tankers
Railway freight tankers
Liquefied gas tankers
Fuel transportation tanks
Stainless steel pressure tankers
The pressure tank leveling machine helps manufacturers improve welding sealing performance, ensure zero leakage rates, and enhance the operational safety of road and railway tanker transportation systems.
EZHONG equipment can process tanker bodies with capacities up to 100m³, helping customers improve manufacturing efficiency and ensure safe, compliant, and reliable tanker production.
Tanker for transporting liquid food, fuel, and other substances is also mostly used in our EZHONG. In the most shape (circular, elliptical, and multilayer), the CNC roller of steel or aluminum sheet is used to bend the road and the railway tanker, the thickness range is 3 to 15 mm, the width is 3 meters, 6 meters, 8 meters or 10 meters. Depending on the various applications. EZHONG also provides a range of production line machines, like Profile Bending Machine and CNC plate bending machine which are widely used in the production of production tanks.
1. The upper roller of the tanker plate rolling machine produced by Hubei Heavy Industry Equipment Co., Ltd. can be vertically raised and lowered and can be moved horizontally.
2. The vertical lifting is the hydraulic transmission.
3. The hydraulic oil in the hydraulic cylinder acts on the piston rod to obtain the horizontal movement through the turbine worm box, turbine worm.
4. The screw nut mechanism transmits torque and drives the horizontal movement of the upper roller.
5. The lower roller of the pressure machine only rotates to provide torque for the coil.
6. The lower roller of the pressure machine is equipped with an adjustable idler roller, and the upper roller is in the shape of a drum to improve the straightness of the product.
