The marine equipment industry requires high-strength, corrosion-resistant, and heavy-duty forming solutions for offshore platforms, marine pipelines, offshore pile pipes, ship supporting structures, and deep-sea engineering equipment. EZHONG provides integrated plate forming solutions including heavy plate leveling, cylinder rolling, and special-shape forming for marine weather-resistant steel, high-strength anti-corrosion steel, and special alloy materials.
Designed to meet the demanding operating conditions of marine engineering equipment, including seawater corrosion resistance, high-pressure resistance up to 80MPa, and harsh offshore environments, EZHONG equipment supports efficient processing for heavy plates with thicknesses ranging from 10mm to 300mm. The equipment helps manufacturers solve common industry challenges such as insufficient corrosion resistance, low forming precision, and unstable processing efficiency.
The final dimensional tolerance can be controlled within ≤±0.5mm, ensuring excellent structural stability, high corrosion resistance, and long-term operational reliability for offshore engineering applications. EZHONG equipment supports the manufacturing of large marine cylinders with diameters up to Φ10m and is widely used in offshore oil and gas development, marine engineering construction, and offshore infrastructure projects.
EZHONG offshore heavy plate rolling machines are specially developed for processing offshore platform cylinders, marine pipelines, pile pipes, and large marine structural components.
The equipment adopts corrosion-resistant and wear-resistant structural designs to support precision rolling for extra-thick plates and special alloy materials ranging from 10mm to 300mm in thickness. It delivers stable forming quality and excellent dimensional consistency for large marine engineering components operating in complex offshore environments.
Key Advantages
Suitable for offshore platform cylinders and marine pipelines
Supports extra-thick plates up to 300mm
Compatible with marine weather-resistant steel and special alloy materials
Dimensional accuracy within ≤±0.5mm
Single component forming time within 50 minutes
High corrosion resistance and structural stability
The marine equipment rolling machine is widely used for offshore oil platforms, offshore wind power structures, marine pile pipes, subsea engineering systems, and deep-sea equipment manufacturing.
EZHONG marine steel plate leveling machines are specially designed for marine weather-resistant steel plates and heavy marine engineering materials with thicknesses ranging from 10mm to 100mm.
The equipment effectively corrects plate deformation and eliminates internal stress generated during heavy plate processing operations, achieving an internal stress relief rate exceeding 92%. The final plate flatness can reach ≤0.3mm/m, significantly improving assembly precision, welding quality, corrosion resistance, and structural reliability.
Suitable Applications
Offshore platform structures
Marine pipelines
Offshore pile pipes
Deep-sea engineering equipment
Marine heavy structural components
The marine engineering leveling machine helps manufacturers improve processing precision, enhance corrosion resistance performance, and ensure long-term operational safety and stability for offshore engineering equipment.
https://cn.zpmc.com
Brief introduction: Shanghai Zhenhua Heavy Industry (Group) Co., Ltd. (formerly known as Shanghai Zhenhua Port Machinery (Group) Co., Ltd., referred to as: ZPMC) is a well-known enterprise in the heavy equipment manufacturing industry. It is a state-owned A and B-share listed company. The controlling party is China Communications Construction Company, one of the world's top 500 companies. Zhenhua Port Machinery has changed its name to Zhenhua Heavy Industry, occupying the marine field. The company is headquartered in Shanghai, and has 8 production bases in Shanghai, Nantong, Jiangyin and other places, covering a total area of 10,000 mu, with a total coastline of 10 kilometers, especially the Changxing base at the mouth of the Yangtze River, which has a deep water coastline of 5 kilometers. With a load-bearing wharf of 3.7 kilometers, it is the largest heavy equipment manufacturing plant in the country and in the world. The company has 26 60,000-ton to 100,000-ton complete machine transport ships, which can transport large-scale products across seas and oceans to the world.

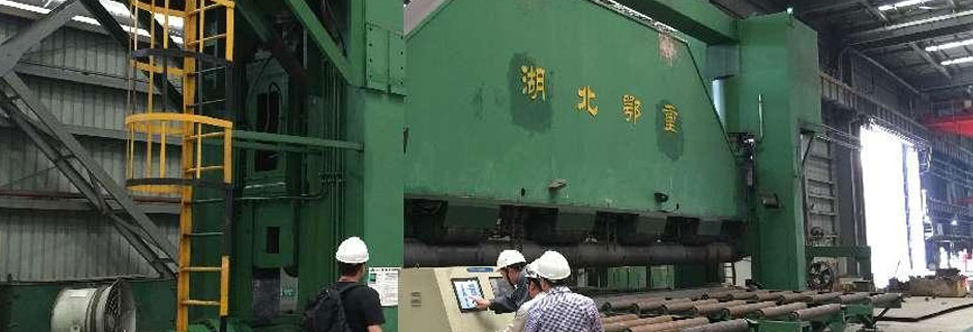

Marine plate rolling machine: EZW11S-1800T*12000mm
（EZW11S-1800T*12000mm heavy plate roller）
| No. p / p | Name | Unit rev. | Meaning | |
| 3.1 | Maximum width of the processed sheet | mm | 12000 | 12000 |
| 3.2 | The maximum length of the processed sheet | mm | 6000 | 6000 |
| 3.3 | The minimum length of the processed sheet | mm | 1500 | 1500 |
| 3.5 | Distance between posts | mm | 12500 | 12500 |
| 3.6 | The length of the working surface of the rolls | mm | 12100 | 12100 |
| 3.7 | Number of bending drive rolls from hydraulic motors | PCS. | 3 | 3 |
| 3.8 | Top roll diameter | mm | 550 | 550 |
| 3.9 | Bottom roll diameter | mm | 500 | 500 |
| 3.1 | Top Roll Torque | Nm | 195000 | 195000 |
| 3.11 | Accuracy of movement of the upper roll along the axis of rotation | mm | One 1 | 1 |
| 3.12 | Torque of each bottom roll | Nm | 195000 | 195000 |
| 3.13 | Minimum | m/min | 1 | 1 |
| Maximum | m/min | 4 | 4 | |
| 3.14 | Maximum distance between upper and lower rolls | mm | 1000 | 1000 |
| 3.15 | Maximum force of the top roll | kN | 18000 | 18000 |
| 3.16 | Maximum inclination of the upper roll for bending conical profiles | mm | 500 | 500 |
| 3.17 | Minimum | mm | 600 | 600 |
| Maximum | mm | 1260 | 1260 | |
| 3.18 | Total installed power of electric motors | kW | 360 | 360 |
| 3.19 | Current frequency | Hz | 50 | 50 |
| Supply voltage | V | 400 | 400 | |
| 3.21 | Overall Height of the Equipment | mm | 11 200 | 11200 |
| 3.22 | Height above floor level 0'' | mm | 7800 | 7800 |
| 3.23 | foundation depth | mm | 3400 | 3400 |
| 3.24 | Machine length | mm | 19 500 | 19500 |
| 3.25 | Width (without conveyors) | mm | 5 200 | 3900 |
Roller plate leveler EZW43T-120*3000 7R
(roller leveler: EZW43T-120*3000 7R)
No. | Name | Data | |
1 | Flat plate (normal atmospheric temperature | MP a yield limit | 485 Q345-A |
maximum gage mm | 90 120 | ||
mini mum gage mm | 25 | ||
maximum width mm | 3000 | ||
Choose the model | No parallel type + guide roll is adjustable | ||
Choose the number of roller | 7（Up 4 Down 3） | ||
2 | working roll | Roll number | 5（Up 2 Down 3） |
Roller distance / roller diameter mm | 800/660 | ||
barrel length mm | 3200 | ||
3 | guied roller | Roll number | 2（Up） |
Roller distance / roller diameter mm | 800/600 | ||
4 | back-up roll | Roll number mm | 790（Original 780） |
On the following numbers | 3 columns 6 rows (roller type) | ||
5 | moved cross beam | Press down stroke mm | +300-0 |
Pressing speed mm/min | 20 | ||
6 | The correction speed | 2.4-6.0 | |
7 | Correction accuracy | 1.0 | |
8 | Power of main motor | 5.7KWX5+18.5KWX2 | |
9 | KNTotal corrective force KN | 136000 | |
10 | Motor discharge roller road | 2 sets, 10m long, PLC control, infinite speed regulation | |
11 | Testimony platform | 2 sets, each set bearing 40T | |
12 | Relative elevation of the corrective stick roller surface | +-800 | |
13 | Host shape (length / width / ground height) | 12/7.0/9.2 | |
